Glaciers on Granite: The Geologic Story of Yosemite

Yosemite preserves a fascinating geologic story hundreds of millions of years in the making. Powerful forces have sculpted this landscape—sometimes gradually, sometimes instantaneously—into the spectacular features seen today.

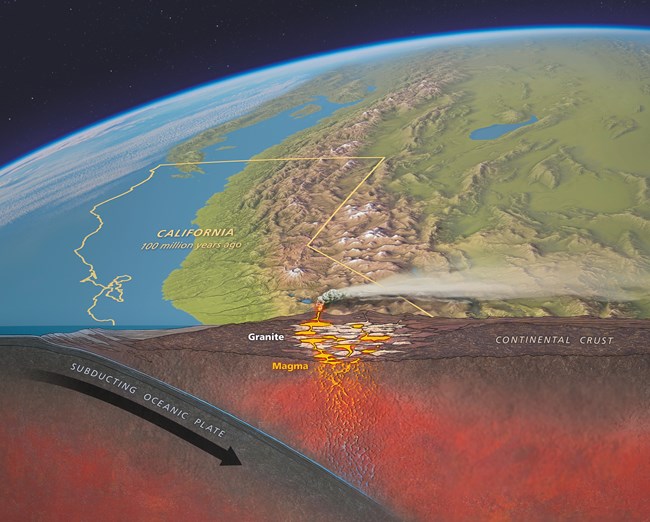

An illustrated depiction of the earth and the coast of prehistoric California covered in a volcanic range. A subducting oceanic plate collides into continental crust, showing a volcanoes magma cooling underground.

Yosemite’s Enduring Bedrock

The bedrock foundation of Yosemite was forged underneath volcanoes millions of years ago.

The Ancient Sierra Nevada

Earth was a different place 100 million years ago. Dinosaurs roamed the land, and the climate was much hotter. A chain of volcanoes ran the length of California, erupting lava and ash. Under these volcanoes, Yosemite’s granite bedrock began to form.The volcanoes were fed by rising magma (molten rock) that originated about 60 miles (100 km) below the surface in the subduction zone, where one of the Earth’s tectonic plates (an oceanic plate) dove beneath the western edge of North America.

Some of that magma erupted as lava from the volcanoes but some of it never made it to the surface. Instead, that magma slowly cooled and crystallized in place about 3 miles (5 km) underground.

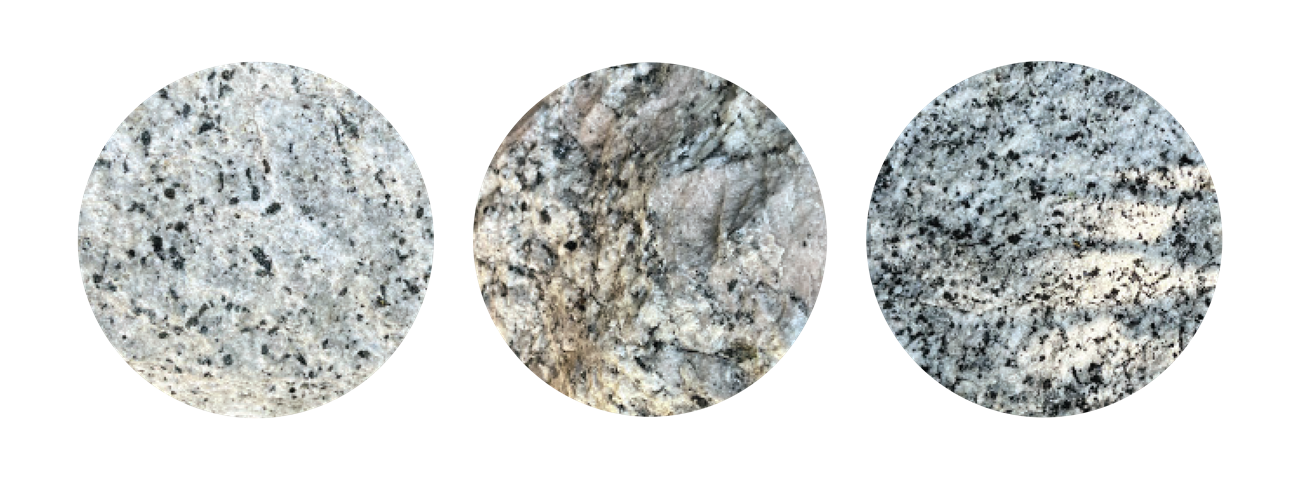

A series of three types of granite.
From left to right: Half Dome Granodiorite, Cathedral Peak Granite, El Capitan Granite

Slow cooling under great pressure produced large, tightly interlocking crystals of quartz, feldspar, hornblende, and other minerals. The resulting rock, called granite, has a sparkly salt-and-pepper appearance. Nearly all the rock you can see from here is a type of granite, including the walls of this building. Yosemite’s towering cliffs testify to the great strength of granite.

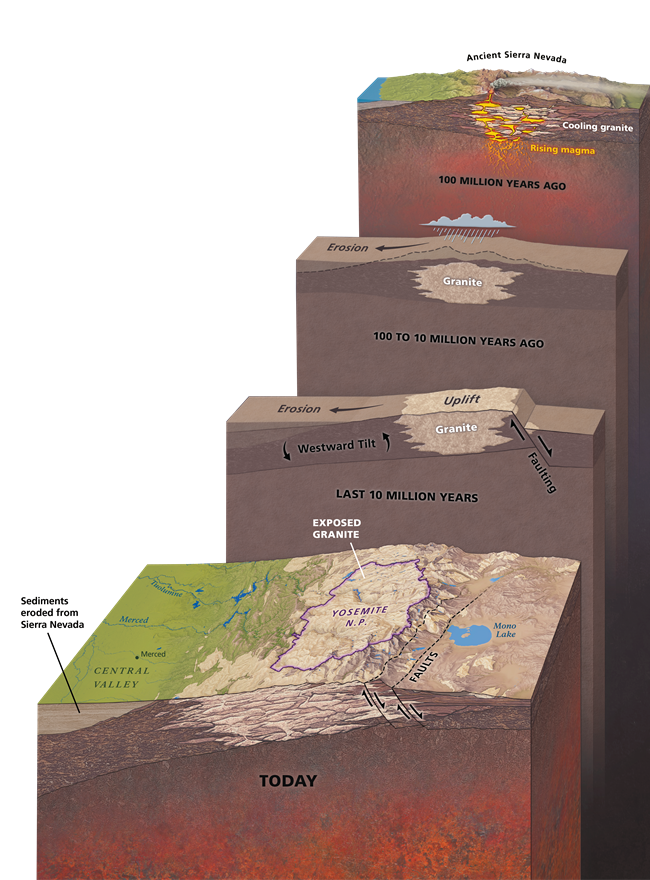

Illustration showing four snapshots in time during formation of the Sierra, including magma turning into granite, then erosion causing uplift and exposure of the granite, over the past 100 million years

The Mountains Rise

As the Sierra Nevada mountains uplifted, erosion removed the overlying rocks to reveal the granite core of the range.

If Yosemite’s granite formed deep under a chain of volcanoes, why is it now exposed on the surface? Erosion! Over the course of 100 million years, rivers and glaciers stripped away miles of overlying rock, gradually wearing down the ancient Sierra Nevada.

In the last 10 million years, faulting along the eastern side of the Sierra Nevada created the asymmetric shape of the mountain range, which has a long, gentle western slope and a short, steep eastern slope. The mountains rose and tilted westward, a process that continues during occasional earthquakes along the east-side faults.

Ice Blankets the Landscape

Over the past few million years, fluctuations in the Earth’s climate caused a series of ice ages that transformed Yosemite. During colder periods, glaciers formed along the crest of the Sierra Nevada and descended the range’s flanks. Two glaciers converged in Yosemite Valley to form one massive glacier thousands of feet thick.

What Are Glaciers?

Glaciers are masses of ice that flow due to gravity, both downhill and from thicker to thinner regions. In very cold environments, snow may persist on the landscape year-round. Over centuries, new snow buries the old and compresses it into ice. Ice also forms by the refreezing of meltwater. Glacier ice is solid but slowly moves like honey flowing down a tilted plate. It also flows by sliding across bedrock made slippery by meltwater.

How Glaciers Erode the Underlying Rock

A glacier’s weight pushes unevenly on the bedrock. Pressure differences break off bedrock fragments, which the ice carries away like a conveyor belt. Sliding ice drags embedded rock fragments across the ground surface. This scratches and abrades the bedrock, leaving behind parallel grooves called striations and smooth, shiny surfaces of glacial polish. When the glacier retreats, it leaves behind solitary boulders termed erratics and piles of rock debris called moraines.

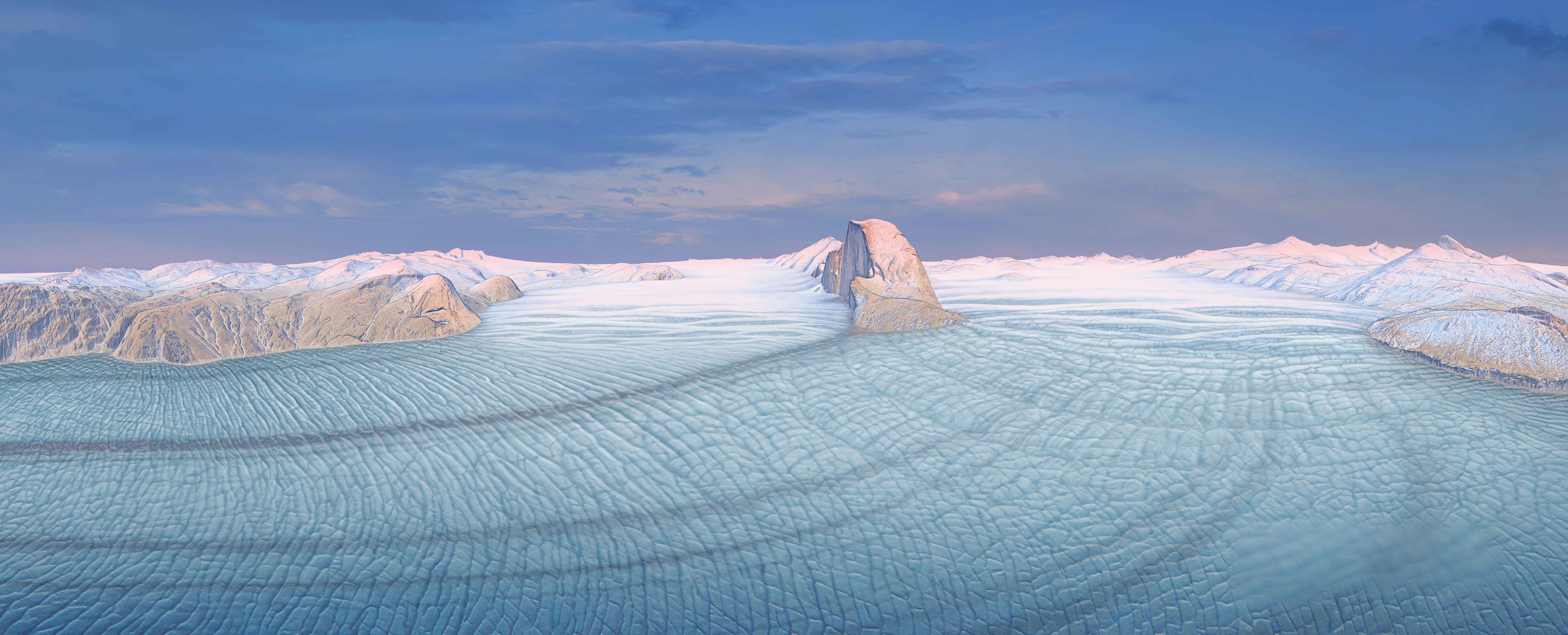

Illustration of Yosemite Valley filled almost to the rim with ice as Half Dome protrudes a little higher
Glacier Point as it might have appeared during the most recent glaciation 20,000 years ago. Cracks in the glacier, called crevasses, result from ice movement. Where glaciers converge, debris forms stripes along the surface known as medial moraines.

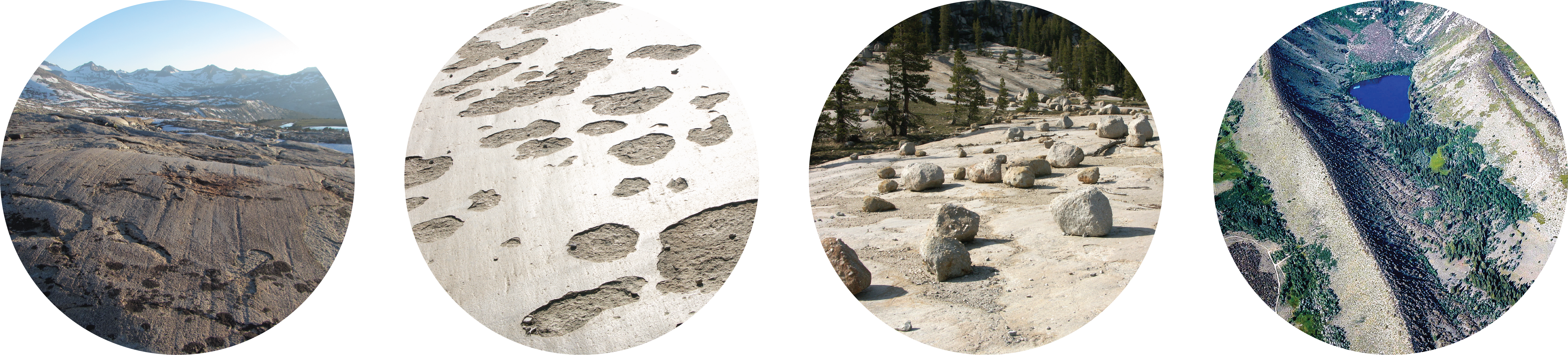

Four photos showing glacial striations, glacial polish, glacial erratics, and glacial moraines
Photos, left to right: striations, glacial polish, erratics, and moraines

A man in a hat poses in front of a camera.

The great rocks of Yosemite, expressing qualities of timeless yet intimate grandeur, are the most compelling formations of their kind. We should not casually pass them by, for they are the very heart of the earth speaking to us.

—Ansel Adams, photographer

Image credit: NPS Photo



The Formation of Yosemite Valley

Over the last 10 million years, rivers carved narrow canyons. Later, repeated glacial advances scoured the canyons, eroding them deeper and wider. Today, waterfalls plunge from sheer cliffs above a flat-floored valley.

A bronze relief and an illustration of Yosemite Valley before it was formed.

Pre-Glacial River Canyon

As the Sierra Nevada rose, rivers and streams cut downward into the bedrock. This action dissected the landscape into narrow V-shaped canyons bordered by rolling granite hills above.

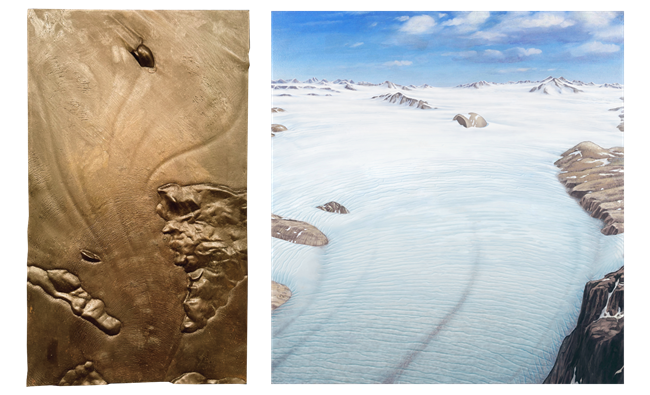

A bronze relief shows Yosemite Valley being formed. An illustration shows the same concept, showing a large glacier covering most of what was the valley.

Major Glaciations Enlarge the Canyon

As the climate cooled, glaciers formed along the Sierra Nevada crest and flowed down into the canyons. Glacial erosion transformed the narrow V-shaped canyons into broad U-shaped valleys. The largest glaciers filled Yosemite Valley almost to the top of Half Dome and gouged down far below the modern valley floor.

A bronze relief showing the formation of Yosemite Valley paired with an illustration of a glacier passing through and carving the valley.

The Most Recent Glaciation

The most recent glacier occupied Yosemite Valley about 20,000 years ago, filling the valley approximately halfway with ice. As the climate warmed about 15,000 years ago, the glacier melted back and eventually disappeared. Tributary streams that could not keep pace with glacial erosion were left hanging far above the valley floor, forming tall waterfalls.

A bronze relief of Yosemite Valley as it looks now. An illustration depicting Yosemite Valley as it looks today.

Post-Glacial Valley

Today’s Yosemite Valley is a deep bedrock basin with steep walls carved by multiple glaciations. The basin is partially gilled with as much as 2,000 feet (600 m) of sediment left behind by the receding ice, creating a flat valley floor. Rockfall debris piles up beneath the cliffs, forming cone-shaped deposits of boulders called talus.


Sculpted from Stone

Yosemite’s granite bedrock is split by two distinct types of fractures that give shape to today’s iconic landforms.

Regional Joints

A network of fractures, or joints, crisscrosses the Sierra Nevada and extends deep into the bedrock. Water collects in these joints, concentrating erosion there. The network of joints becomes a framework around which the landscape evolves. Regional joints define the overall shape of Yosemite Valley and many of its features, such as the vertical face of Half Dome and the cliffs that form Vernal and Nevada Falls.

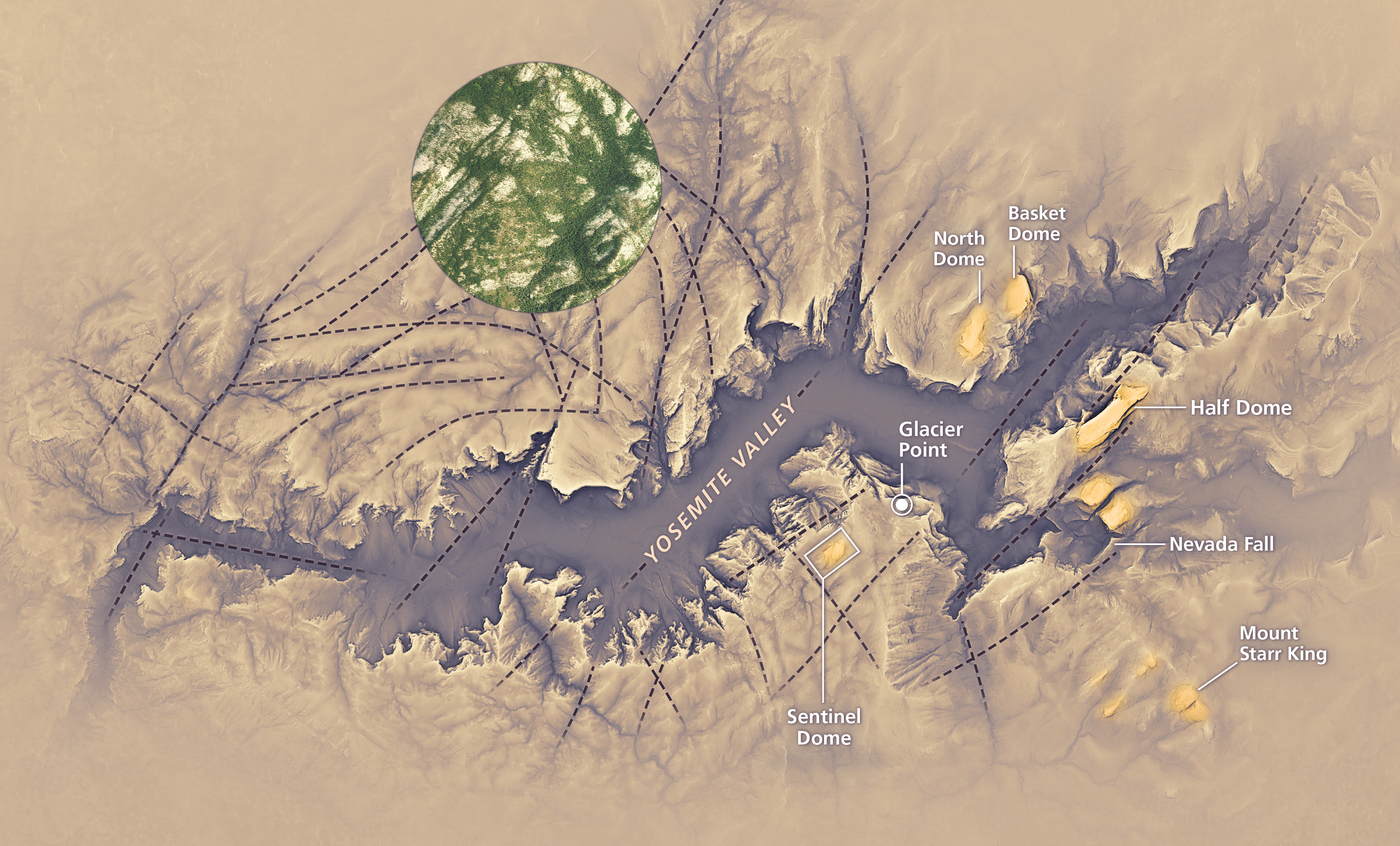

Map of Yosemite Valley highlighting the linear cracks in the rock, to which some cliffs align
Regional joints extend for miles and can be identified from space, as seen in this satellite image. They hold soil and water that allow trees to grow on otherwise barren bedrock.


Exfoliation Joints and Domes

Smaller, curving fractures called exfoliation joints lie in between the regional joints. These fractures produce slabs of rock like layers of an onion. Shedding of these layers gradually transforms sharp ridges into rounded domes. Many of Yosemite’s famous domes are visible from here, including North Dome, Basket Dome, Mount Starr King, and Half Dome.

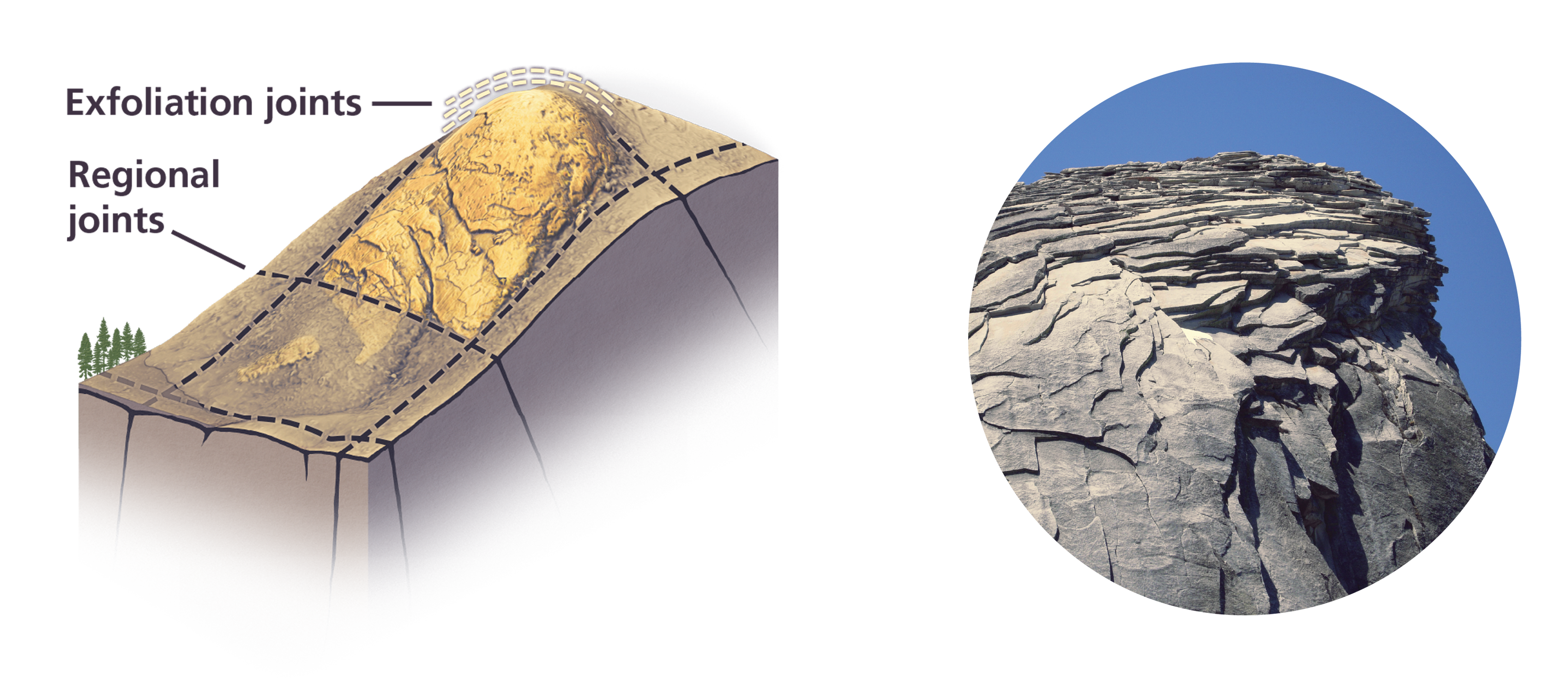

Diagram showing both linear regional joints and exfoliation joints, which are subparallel to the surface. Another photo shows exfoliation looking like layers of rock peeling off a dome
Left: A short hike up nearby Sentinel Dome provides an exemplary view of a granite dome formed by exfoliation. Right: Exfoliation joints near the summit of Half Dome.

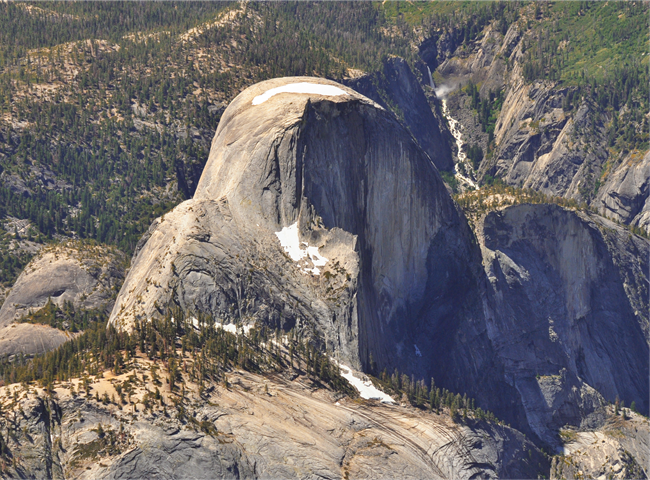

Aerial view of Half Dome, which looks like a rounded ridge with a sheer cliff on one side

Allen Glazner

What Happened to the Other Half of Half Dome?

Half Dome is unique because it looks like it’s been cleaved in half. In fact, more than half of the dome remains.

While it is tempting to imagine Half Dome obtaining its iconic profile in a single dramatic event, it probably happened gradually. Exfoliation rounded the dome’s summit. Glacial erosion steepened the cliffs on either side. The sheer northwest face formed along a vertical joint, with rockfalls frequently chipping away at the face.

Even today these processes continue to change Half Dome’s appearance.

Falling Rocks and Rising Waters

After glaciers retreated from Yosemite Valley, powerful geologic forces emerged to further sculpt the landscape.

Rockfalls

Yosemite Valley’s cliffs experience many rockfalls each year. Earthquakes, rain, freeze-thaw cycles, and heat from the sun all loosen slabs from the cliffs. Rockfalls continue to shape Yosemite’s landscape. They can also be dangerous, leading geologists to study their risk.

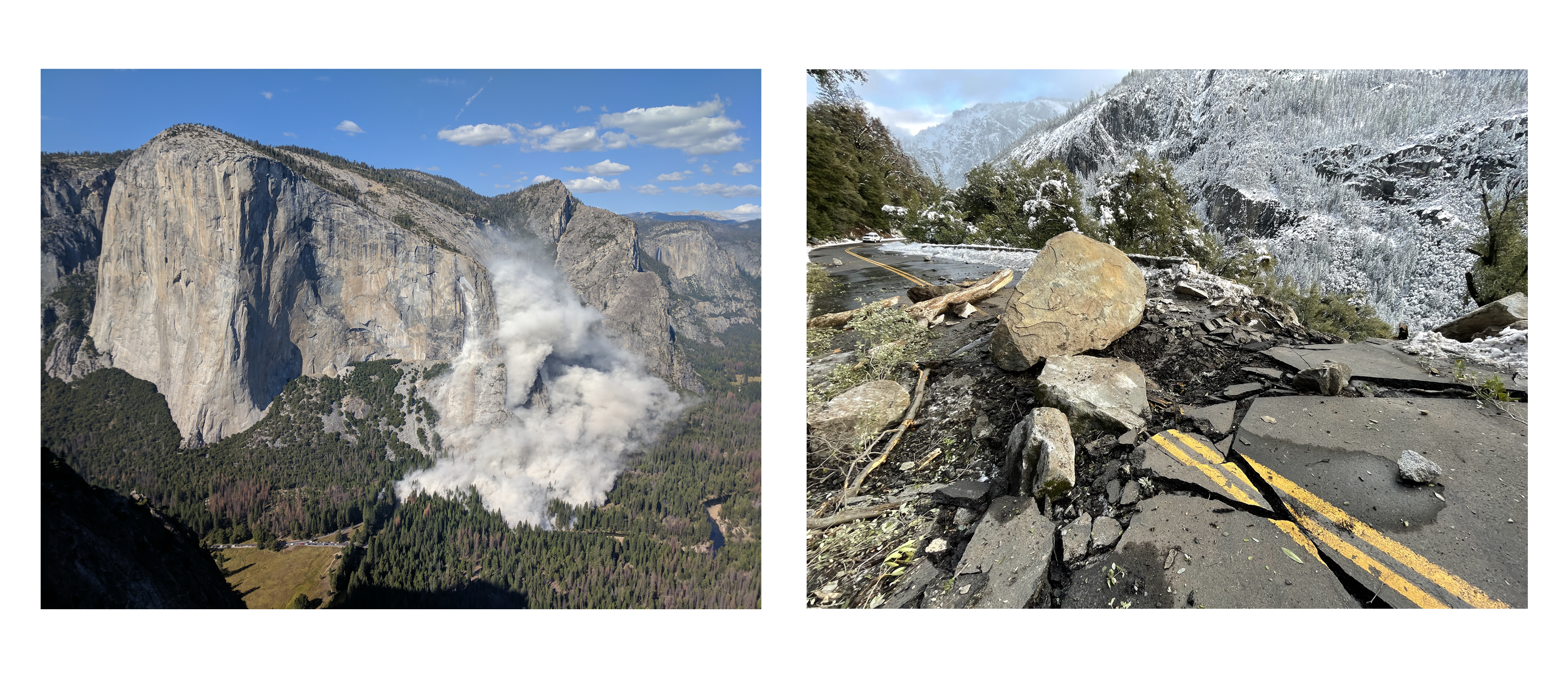

Two images of rockfalls, one of a cloud from a rockfall covering half of a massive granite monolith. The other is a debris field of rocks and dirt across a road.
(Left) A large rockfall from El Capitan on September 28, 2017. Notice the cars parked along the meadow for scale. As rocks tumble down the cliffs, they shatter into smaller pieces, producing clouds of dust. (Right) Rockfall damage to the Big Oak Flat Road near Yosemite Valley.

Photo: Brian Degenhardt



Floods

Winter rainstorms and rapidly melting snow can cause rivers to rise, flooding the flat floor of Yosemite Valley. Floods nourish meadows with water and sediment but can damage roads and buildings.

Rockfalls and floods remind us that Yosemite’s stunning scenery continues to change. As you explore Yosemite, you are witnessing a living landscape millions of years in the making.To learn more about Yosemite’s geological story, visit go.nps.gov/YosemiteGeology

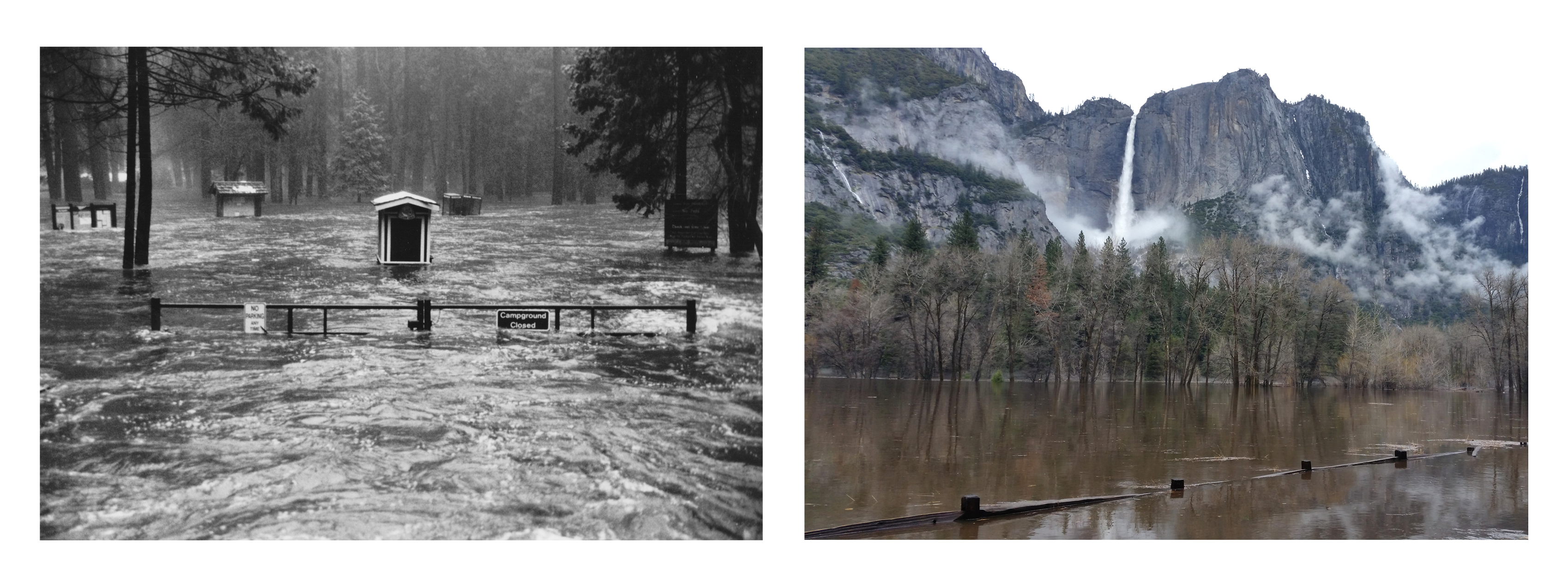

A series of image. The first is a black and white image of a flooded campground. The second is a meadow completely flooded in water with Yosemite Falls cascading over a cliff in the distance.
(Left) Yosemite’s largest flood on January 2, 1997 covered much of the Valley floor. (Right) Runoff from a winter storm floods a trail in Yosemite Valley.


A View Like No Other

True appreciation of landscape comes only when one is alive to both its beauty and its meaning.” – Fritiof Fryxell, Geologist

This bare-earth map reveals details of the land surface that might ordinarily be obscured by vegetation, providing a unique view of the geologic processes that shape Yosemite. To learn more about Yosemite’s geology, and to see what this view might have looked like during the most recent glaciation, visit the Glacier Point Geology Hut at Glacier Point.

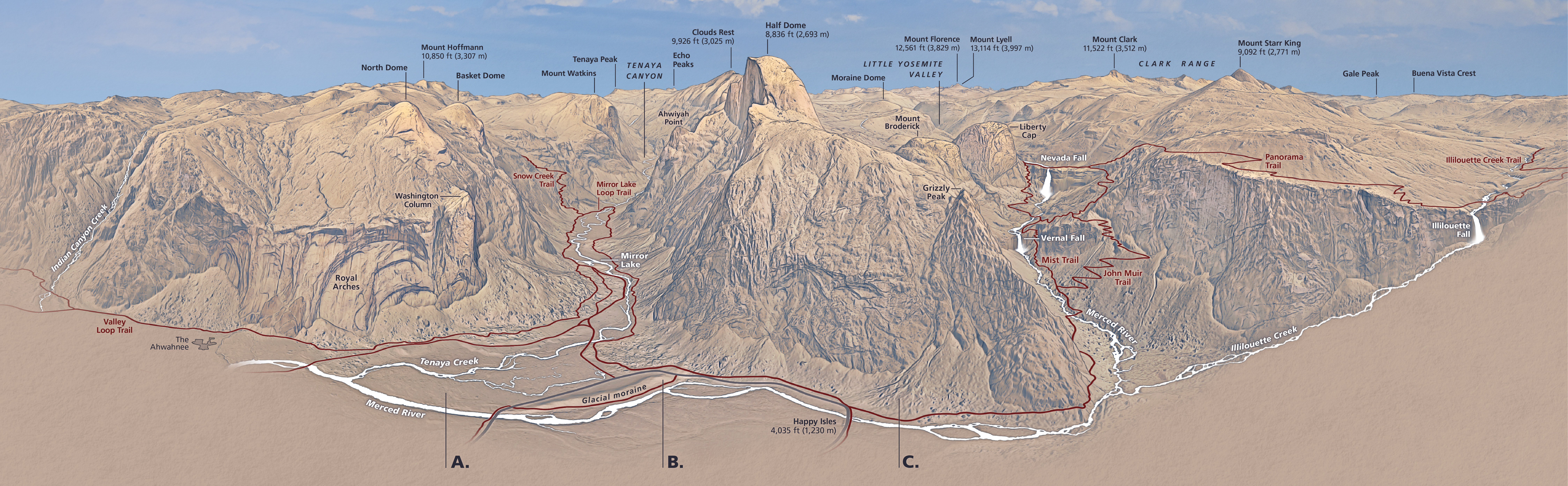

An illustrated view of Glacier Point with numerous peaks, mountains, waterfalls, and other locations listed.
A. The flat floor of Yosemite Valley is a floodplain composed of sediments carried by the Merced River.
B. Glacial moraines are distinctive ridges of rocky debris left by melting glaciers.
C. Talus slopes, made up of rockfall boulders, line the bases of Yosemite’s cliffs.

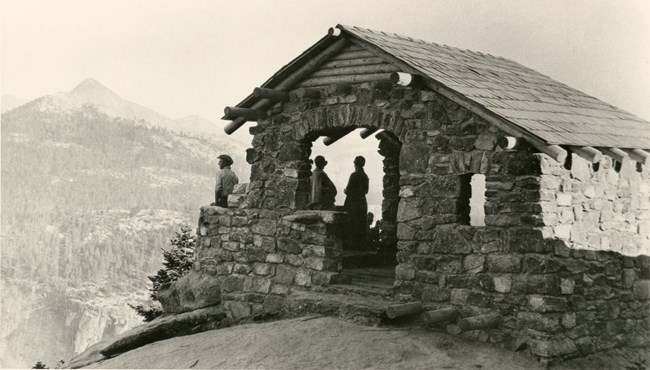

A man in a hut comprised of stone and wooden logs looks out over the distant landscape.
Visitors enjoy the views from the recently completed Geology Hut, ca. 1928.

A National Park First

Welcome to the first trailside museum in the National Park System.

Architect Herbert Maier designed this Rustic-style observatory in 1925. For more than 100 years it has hosted the park’s geology exhibits and provided a unique viewpoint for visitors to observe Yosemite’s geological landscape.

The Yosemite Museum Association (today, Yosemite Conservancy) funded the original construction of the Geology Hut. In recognition of the hut’s centennial, Yosemite Conservancy donors funded a major rehabilitation of this iconic landmark.

Yosemite Conservancy provides millions of dollars annually to support projects and programs that preserve Yosemite National Park and that enrich the visitor experience. To learn more about Yosemite Conservancy, visit yosemite.org.

A man uses a saw to shave bark off of a large log. A man builds a roof of logs on a stone building overlooking Half Dome. Two men look through a binocular exhibit inside a stone building overlooking Half Dome. A man observes exhibits inside a building.
Pictures from left to right: 1. A carpenter uses a draw knife to remove bark from a log to build the Geology Hut, ca. 1924. 2. Construction of log rafters to support the roof of the Geology Hut, ca. 1924. 3. Geologist Francois Matthes observes the landscape from the Geology Hut, ca. 1930. 4. Ranger Naturalist William McEwen views geology exhibits in the Geology Hut, ca. 1965.
