Granite

Granite dominates the geology of Yosemite National Park. The park boundary perfectly frames a landscape that is composed almost entirely of granite, and it’s no surprise that this landscape contains some of the most iconic rock formations on earth.

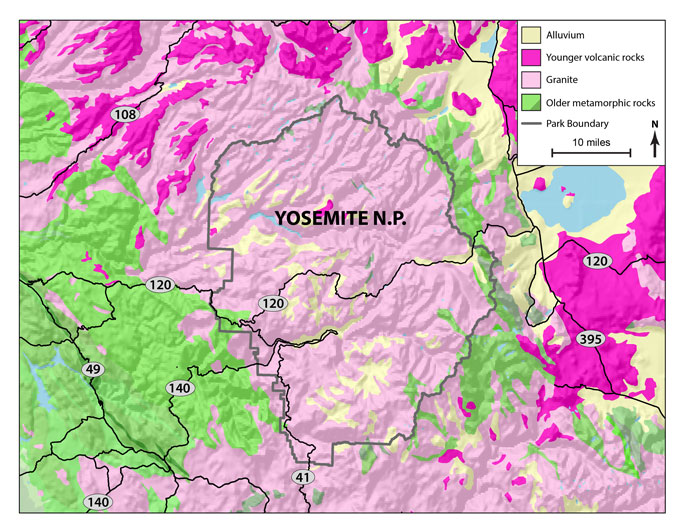

Geologic map of Yosemite region
The bedrock geology of Yosemite National Park consists almost entirely of granitic rocks.

Granite is an intrusive igneous rock, which means it crystallized from molten rock, called magma, miles underground. At these depths, magma is insulated by the rocks around it and cools very slowly, growing large interlocking crystals. Granite is often said to have a "salt-and-pepper" appearance: the lighter-colored minerals are quartz, potassium feldspar, and plagioclase feldspar, and the darker-colored minerals are mostly biotite and hornblende. There are also minor amounts of various accessory minerals such as titanite and zircon.

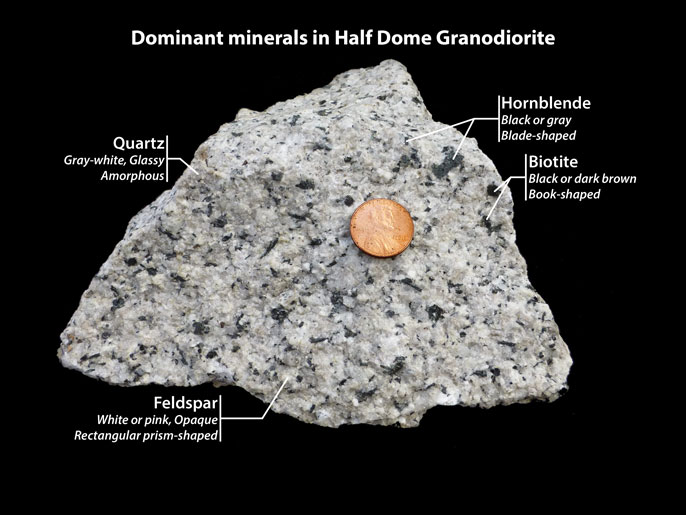

Half Dome Granodiorite showing quartz, feldspar, hornblende, and biotite
The major minerals that are present in granite as displayed in a sample of Half Dome Granodiorite.

Looking at a granitic rock's composition tells geologists much about its formation. Different granites have unique chemical compositions that produce different mineral proportions. In fact, granitic rocks are generally classified by their mineral proportions and given names such as granite, granodiorite, tonalite, and diorite. A clear example of contrasting compositions is visible on the southeast face of El Capitan where the dark-colored hornblende-rich Diorite of North America intruded the older and lighter-colored quartz and feldspar-rich El Capitan and Taft granites.

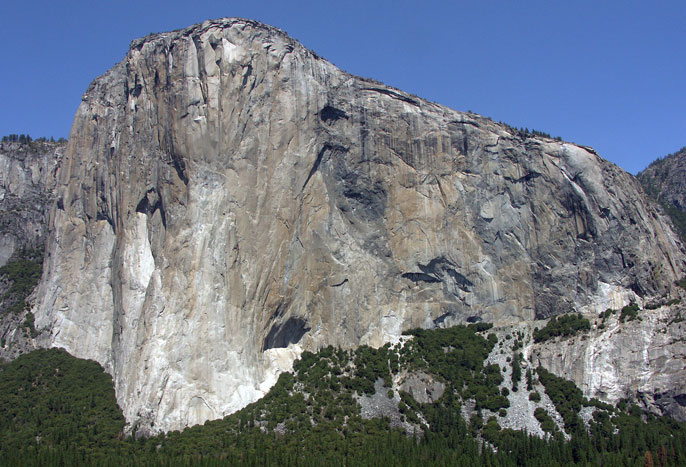

El Capitan
Granitic rocks of different compositions (and colors) are juxtaposed on the southeast face of El Capitan. The darker rock in the center of the photograph is the Diorite of North America.


The thermal history of a granite—how fast it cooled and how long it spent at different temperatures—dictates the size of the mineral grains, and thus the rock texture. A prime example is the Cathedral Peak Granodiorite, which has unusually large (up to 3 inches long) crystals of potassium feldspar that are thought to have formed through episodic heating and cooling of the magma. This type of rock dominates the landscape in the Yosemite high country near Tuolumne Meadows.

Formation

Granite is most often formed where oceanic plates dive beneath continental plates in tectonic environments called subduction zones. In these zones, the input of water-rich oceanic crust causes partial melting at the base of the crust about 25 to 30 miles below the earth’s surface. The resulting magma is less dense than material typically found at that depth, so it rises like oil in salad dressing. This is the silica-rich magma that is often violently expelled from the large volcanos, like Mt. Saint Helens and Mt. Rainier, which sit above subduction zones today.

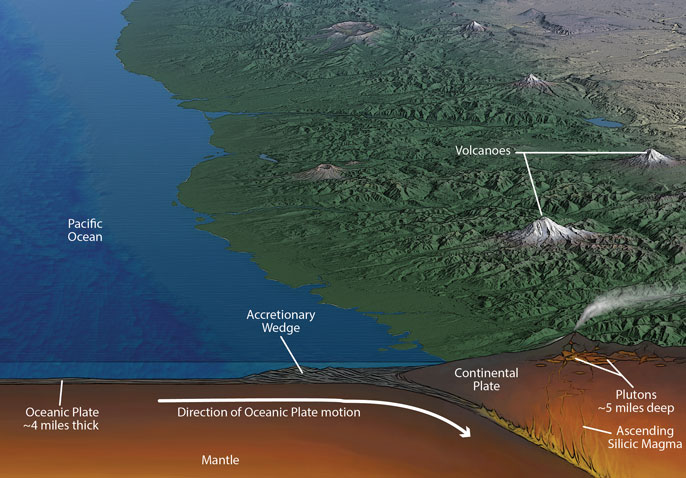

Diagram showing subduction (oceanic plate descending beneath continental plate) with mountains and volcanoes above
Diagram of subduction beneath the ancestral Sierra Nevada about 100 million years ago. Illustration by Eric Knight.


Plutons

Approximately three to 10 miles below these volcanoes are the magma chambers that feed them, which build up over time as bodies called plutons. This rock, once it cools, will become the type of granite that is exposed in Yosemite. Plutons are large (often covering over 400 square miles) and are typically formed by many pulses of magma over a few million years. The granite that composes an individual pluton will have a relatively homogeneous texture and composition, displaying minor variations across its extent. There are roughly 35 individually defined plutons in the Yosemite area. Plutons are usually named after a famous landmark that is dominantly made of that rock (examples include the Half Dome Granodiorite and the El Capitan Granite).

Intrusive Suites and Batholiths

A group of plutons that are considered to be part of the same magmatic event and thus related are called intrusive suites. Intrusive suites typically are emplaced over about 10 million years and are often interpreted as being the roots of a single volcanic system. There are seven intrusive suites in Yosemite National Park. The Tuolumne Intrusive Suite is the youngest and most extensive, occupying about 1/3 of the park’s area. The Tuolumne Intrusive Suite contains many famous rock types including the Half Dome Granodiorite and Cathedral Peak Granite.

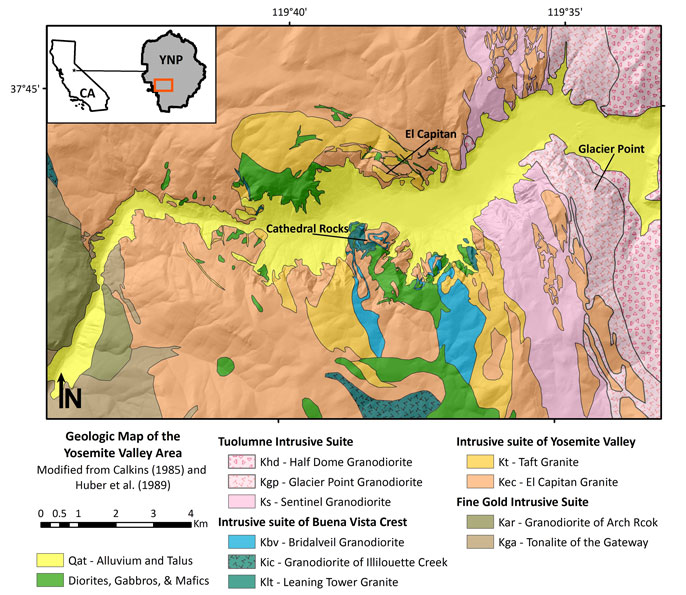

Geologic map of Yosemite Valley
Geologic map of Yosemite Valley showing the extents of different granitic rocks and their respective intrusive suites.


A large amalgamation of plutons is called a batholith. Yosemite is situated within the 70-mile-wide, 300-mile-long Sierra Nevada Batholith. Most of the granite in the Sierra Nevada Batholith was emplaced between 120 and 85 million years ago during the Jurassic and Cretaceous periods. This is one of the most rapid periods of continental crust assembly known. In fact, it has been speculated that this voluminous volcanism may have contributed to the mass extinction during the middle of the Cretaceous period during which most large marine dinosaurs (such as ichthyosaurs and plesiosaurs) perished.

Hot Research

Few places on earth display the internal complexity of a batholith better than El Capitan. Even though Yosemite Valley has received considerable attention because of its geologic fame and dominant place in our cultural geography, the 3,000-foot-tall southeast face of El Capitan remained unmapped until recently. Between 2011 and 2013, a team of geologists completed the first geologic map of this sheer face. The map was made using a combination of techniques including remote sensing, climbing, and geochemistry. The map reveals many details about the vertical structures of plutons and the complex interactions between intrusive suites.

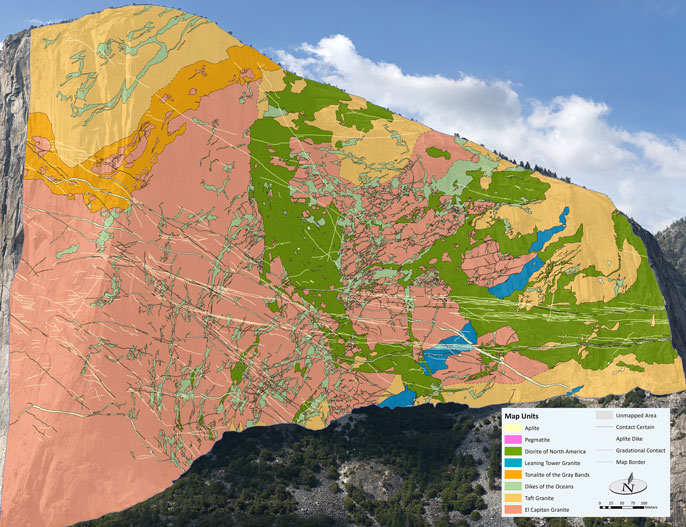

Geologic map of El Capitan
Geologic map of the southeast face of El Capitan showing the complexity of the granitic rocks there. This complexity reveals intricacies of magma intrusion that occurred miles below the surface millions of years ago.

Rock climber on the side of El Capitan making notes in a notebook
A geologist maps granitic rocks 2,000 feet above the floor of Yosemite Valley on El Capitan. Photo by Chris Gibbisch.






Resources

"Granitic rocks of the Yosemite Valley area, California" by Frank C. Calkins and Dallas L. Peck, in Geologic Guide to the Merced Canyon and Yosemite Valley, California, California Division of Mines and Geology Bulletin 182.

Plutonism in the Central Part of the Sierra Nevada Batholith, California” by Paul C. Bateman, 1992, U.S. Geological Survey Professional Paper 1483. [15 MB PDF]

The Geologic Story of Yosemite National Park” by N. King Huber, 1987, U.S. Geological Survey Bulletin 1595. [49 MB PDF]

Sierra Nevada Batholith Geologic Map Mosaic

Yosemite’s Iconic El Capitan Mapped in Hi-Res 3-D” by Brian Clark Howard, 2013, National Geographic.
