Tower of Voices

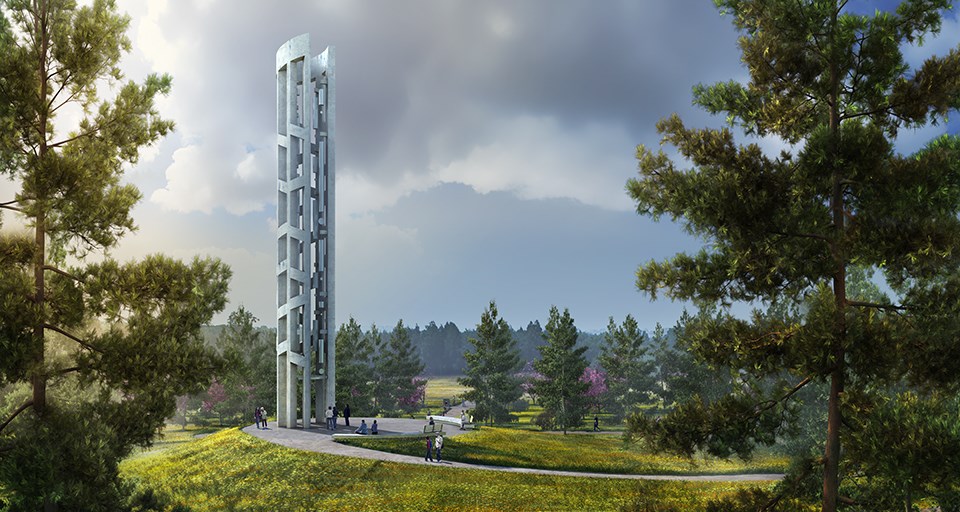

The Tower of Voices is conceived as a monumental, ninety-three feet tall musical instrument holding forty wind chimes, representing the forty passengers and crew members.
The Tower of Voices is conceived as a monumental, ninety-three feet tall musical instrument holding forty wind chimes, representing the forty passengers and crew members. The intent is to create a set of forty tones (voices) that can connote through consonance the serenity and nobility of the site while also through dissonance recalling the event that consecrated the site.

Artwork courtesy of bioLinia and Paul Murdoch Architects.


This artistic rendition of the completed wind chimes inside the Tower of Voices shows the forty different chimes and the internal strikers attached to sails projecting from the bottom of each chime.
The wind chimes inside the Tower of Voices. The chimes will be constructed of polished aluminum tubes ranging 8-16 inches in diameter and approximately five to ten feet in length. The size of each chime is dependent on the musical note and associated frequency that it is intended to produce.

Artwork courtesy of bioLinia and Paul Murdoch Architects.

Tower of Voices Project Description


Overview
The Tower of Voices serves as both a visual and audible reminder of the heroism of the forty passengers and crew of United Flight 93. On September 09, 2018 Flight 93 National Memorial will host a dedication event to complete the final phase of construction and complete the permanent memorial.

The tower is conceived as a monumental, ninety-three feet tall musical instrument holding forty wind chimes, representing the forty passengers and crew members. It is intended to be a landmark feature near the memorial entrance, visible from US Route 30/Lincoln Highway. The Tower of Voices will provide a living memorial in sound to remember the forty through their ongoing voices.

The tower project will be constructed from 2017 to 2018 with a dedication of the project on September 9, 2018. Funding for the design and construction of the project is provided through private donations to the National Park Foundation and the Friends of Flight 93 National Memorial.

Uniqueness of Design
There are no other chime structures like this in the world. The shape and orientation of the tower are designed to optimize air flow through the tower walls to reach the interior chime chamber. The chime system is designed using music theory to identify a mathematically developed range of frequencies needed to produce a distinct musical note associated with each chime. The applied music theory allows the sound produced by individual chimes to be musically compatible with the sound produced by the other chimes in the tower. The intent is to create a set of forty tones (voices) that can connote through consonance the serenity and nobility of the site while also through dissonance recalling the event that consecrated the site.

Design Features
The tower is approximately ninety-three feet tall from the base to the top with some height variations. The Tower cross section is a “C” shape with a fifteen foot outside diameter and eleven foot inside diameter. The “C” shape allows sound to reflect outwardly from the open side in a fan-shaped pattern. The chimes will be suspended a minimum of twenty feet above the main plaza and will be suspended from the interior walls of the tower up to the top.

The tower walls will be constructed of precast concrete segments linked by connectors. The chimes will be constructed of polished aluminum tubes ranging eight to sixteen inches in diameter and approximately five to ten feet in length. The size of each chime is dependent on the musical note and associated frequency that it is intended to produce. Chimes of this size and magnitude do not currently exist in the world. The chimes are wind activated and will have internal strikers attached to sails projecting from the bottom of each chime.

Surrounding Landscape
The tower is located on an oval concrete plaza that is built on top of an earth mound to create an area more prominent on the landscape. The plaza includes two curved concrete benches facing the opening of the tower.

The tower is surrounded by concentric rings of white pines and deciduous plantings. The concentric plantings may be interpreted as resonating “sound waves” from the Tower, alluding to the auditory qualities of the chimes housed within. A direct paved path leads to the tower from the parking lot. A longer, meandering crushed stone path winds through the trees and allows visitors an alternative approach to the tower. All other landscaped areas of the project will be planted with a native wildflower seed mix similar to other landscaped areas of the park.



Tower of Voices - Live Webcam


Tower of Voices Construction
Construction of the Tower of Voices began in 2017. The tower wwas dedicated on Sunday, September 9, 2018, during a special ceremony at 1:00 pm. You can view the Tower of Voices, now nearly complete, at the Friends of Flight 93 Memorial website.


Tower of Voices Photo Gallery



Last updated: September 14, 2018
