lake and tundra — Devil Mountain Maar, Bering Land Bridge National Preserve, Alaska. Devil Mountain Maar has a northern and a southern crater, which are separated by a small spit. The maar is nearly 5 miles (8 km) long and 3.7 miles (6 km) wide, and is 328 feet (100 m) deep.

Introduction

Maars and tuff rings are low-standing volcanoes with wide, bowl-shaped craters. They commonly have a donut-like profile, and may be breached. Their low edifices consist of shallowly-dipping deposits of tuff made mostly of ash and angular, nonvesicular pebble-sized pyroclasts (lapilli).

A maar is a volcanic crater in which the crater lies below the surrounding ground level and is surrounded by a low pyroclastic cone. Because they are topographic lows, maars frequently contain lakes in their craters.

A tuff ring is a pyroclastic cone with a crater above the surrounding ground surface. Tuff ring craters are usually dry.

Maars and tuff rings are usually associated with diatremes. Diatremes are funnel-shaped breccia pipes formed via phreatomagmatic (hydrovolcanic) explosions and fragmentation. This type of volcano is also known as a maar-diatreme volcano.

Schematic illustration of a maar explosion. During phreatomagmatic eruptions, surface or groundwater interacts with hot magma, shattering pre-existing bedrock and fragmenting fresh magma in violent eruptions. These eruptions form small eruption columns and send out base surges.
Graphic by Trista Thornberry-Ehrlich (Colorado State University).

National Park Maars and Tuff Rings

At least six units of the National Park System contain maars or tuff rings.

The Espenberg maars in Bering Land Bridge National Preserve contain the largest known maars on Earth. Their large diameters are a result of the interaction of magma with thick permafrost, which led to prolonged and highly explosive eruptions.
Ubehebe Craters in Death Valley National Park is a group of 12 maars, with Ubehebe Crater itself being the youngest and largest.
Pintado Maar in Petrified Forest National Park is the only maar from the Hopi Buttes volcanic field within the park. The Hopi Buttes volcanic field contains approximately 300 maars, tuff rings, diatremes, and cinder cones in one of the most extensive maar-diatreme fields on the planet.
While not within the boundary of Capulin Volcano National Monument, Capulin’s Rim Trail provides bird’s eye views of Mud Hill, a nearby tuff ring in the Raton-Clayton Volcanic Field.
See, More National Park Sites containing Maars or Tuff Rings

View from Capulin—Mud Hill

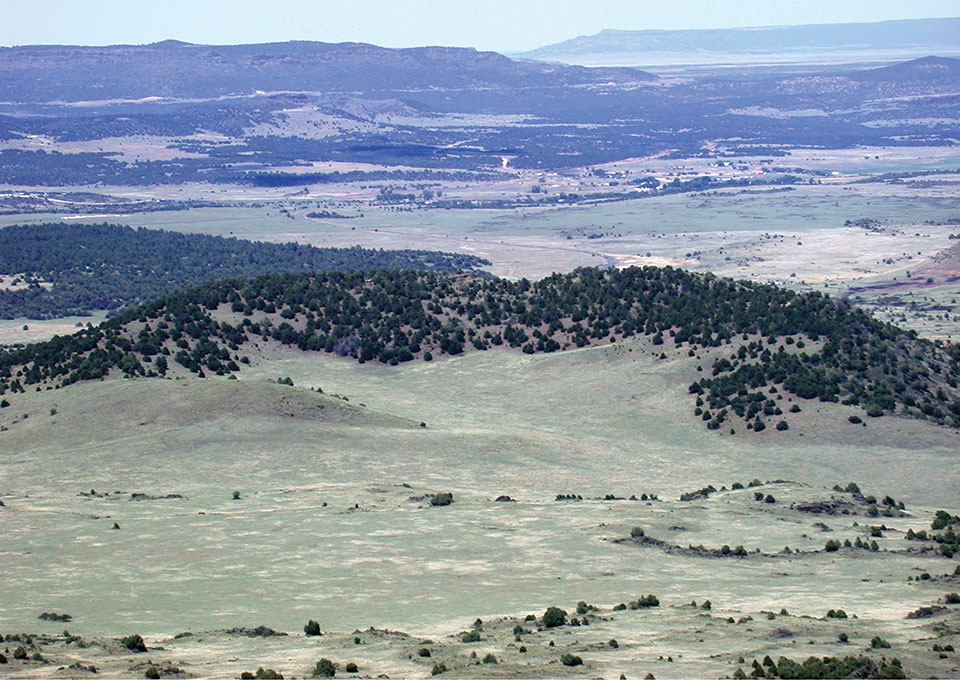

Left image
Mud Hill viewed from Capulin Volcano.
Credit: NPS photo.

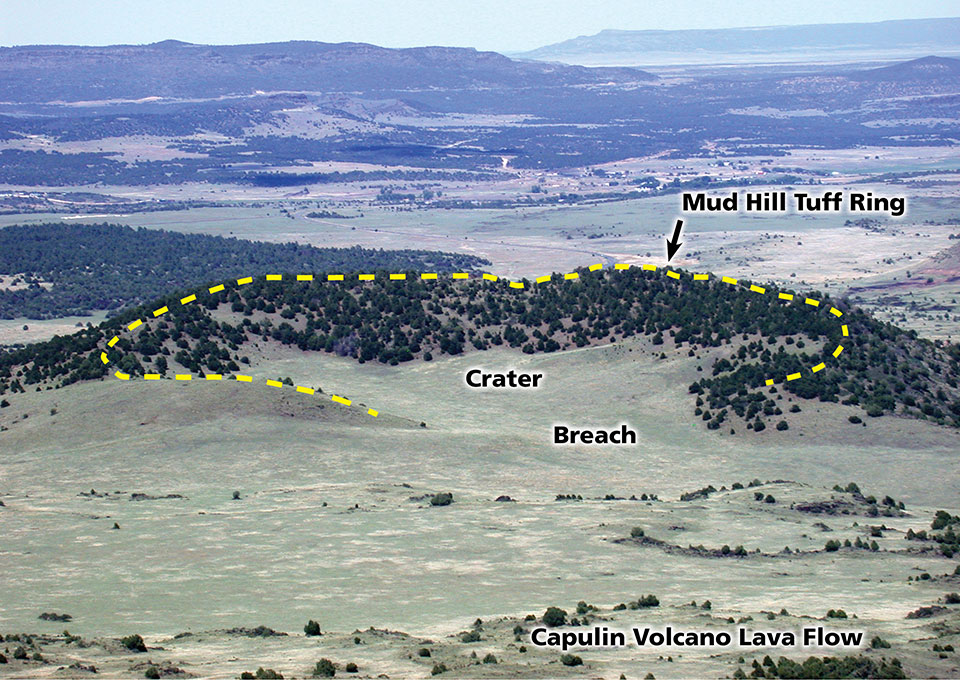

Right image
Feature labels. Mud Hill, a tuff ring near Capulin Volcano National Monument and visible from Capulin's rim. The yellow line indicates the crest of the tuff ring.
Credit: NPS photo.

Overall Description

Both maars and tuff rings have low pyroclastic cones that surround wide craters. The ejecta rings around maars are typically less than 100 ft (30 m) tall. Those around tuff rings are commonly less than 160 ft (50 m) tall.

These types of volcanoes have broad and relatively thin deposits of pyroclastic ejecta, consisting of both juvenile pyroclasts formed from magma, and non-juvenile fragments made of shattered bits of country rock. The majority of pyroclasts in some maars may consist of non-juvenile fragments.

Pyroclasts are deposited via both ash fall (or fallout) and base surges.

The word “maar” comes from a German dialect word for the circular lakes found in these volcanoes in the Rhineland area of Germany.

Lava flows rarely occur in association with maars and tuff rings.

Magma Composition

Most maars and tuff rings form from low-viscosity magmas with basaltic and other mafic or ultramafic compositions.

Eruption Types and Classification

The eruptions which produce maars and tuff rings result from magma-water interactions at or near the surface. These phreatomagmatic (hydrovolcanic) eruptions are classified as Surtseyan eruptions and are the wet equivalent of Strombolian eruptions. The mixing of magma and water produces steam explosions which blast magma into fine-grained, angular fragments, and excavate large craters. It is thought that the explosions that form tuff rings occur closer to the surface than those that form maars.

The eruptions are generally quite complex and episodic, with multiple eruptive phases or pulses, and repeated small explosions.

The phreatomagmatic eruptions can be moderately explosive. Eruptions that form maars and tuff rings are usually low (1-2) on the Volcanic Explosivity Index (VEI), but rarely may be as high as 3 or 4.

Maars and tuff rings are small volcanoes and are typically monogenetic because they form in areas where there is a limited magma supply.

Like the eruptions that form cinder cones, maar eruptions have a short duration, frequently only lasting a few days to a few months.

Occurrence

Maars and tuff rings may occur anywhere on land where surface water, shallow groundwater, or permafrost can interact with magma. Maars are common on volcanic islands, in some coastal areas, and in monogenetic volcanic fields in continental environments where there are wet low-lying areas or a high water table.

The Espenberg maars in Bering Land Bridge National Preserve (Alaska) formed in permafrost near Cape Espenberg adjacent to the Chukchi Sea and the Kotzebue Sound, see photo below. The maars in the Hopi Buttes volcanic field adjacent to Petrified Forest National Park (Arizona) formed in water-saturated sediments and playas between 8.7 and 6 million years ago in a continental environment in northern Arizona.

vertical aerial photo of a point of land by the sea that is pockmarked with wetlands and volcanic features — Map of the Espenberg volcanic field in Bering Land Bridge National Preserve which consists of maars, small shield volcanoes, and lava flows. The Espenberg maars are surrounded by thick ash deposits.
GoogleEarth imagery © Landsat 2015.

Features of Maars and Tuff Rings

Wide Craters

steep slopes inside of a large crater — Ubehebe Crater. Death Valley National Park, California and Nevada. The light colored area is made up of preexisting country rocks and pyroclastic deposits from the maar eruption are darker in color.

Maars and tuff rings have wide craters with large diameters relative to the overall width of the volcanic landform. The craters are initiated as blast craters as country rock is removed by explosions. Some infilling of a crater occurs as pyroclastic material accumulates within it. Craters become progressively wider and deeper during eruptions, with some widening occurring via lateral collapse of crater walls.

Most maars and tuff rings are between 0.6 and 1.2 miles (1 and 2 km) in diameter. Devil Mountain maar, the largest of the Espenberg maars, has a diameter of more than 5 miles (8 km), which is only slightly smaller than the diameter of the Crater Lake caldera.

Lakes

round lake in green field — North and South Killeak Maars, Bering Land Bridge National Preserve. These maars are approximately 50,000 and 40,000 years old respectively.
NPS photo.

Because their craters are below the surrounding land surface, maar craters are commonly filled by lakes.

The Espenberg maar lakes are one of the most significant features of Bering Land Bridge National Preserve. These lakes approach 1,000 feet (300 m) deep. The oldest of these volcanoes, Whitefish maar, is between 100,000 and 200,000 years old. The youngest, Devil Mountain maar, is about 17,500 years old.

Surge Deposits

photo of bedded sediments exposed in a bluff

Base surges blast out laterally at the base of an eruption column during phreatomagmatic eruptions, with each explosion sending out another base surge. Base surges are dilute pyroclastic density currents that leave layered deposits, some include cross-bedding structures, similar to those in sedimentary rocks deposited by currents.

^{Photo (right): Base surge deposits on the rim of the Devil Mountain maar. The plane-bedded surge deposits were formed by base surges which are low-density pyroclastic flows. The explosion breccia contains rock fragments brought up from depth, and the scoria layer is composed of vesicular chunks of lava.

NPS Photograph by Chad Hults (NPS Alaska Regional Office).}

Volcanic Hazards

Because tuff rings and maars are usually monogenetic, there should not be a risk of eruption at existing volcanoes of this type. But a new maar or tuff ring may form nearby if an eruption commences.

Geohazards on existing tuff rings or maars include rockfall.

Be Geohazard Aware

National Park Sites containing Maars or Tuff Rings

Aniakchak National Monument and Preserve (ANIA), Alaska—[ANIA Geodiversity Atlas] [ANIA Park Home] [ANIA npshistory.org]
Bandelier National Monument (BAND), New Mexico—[BAND Geodiversity Atlas] [BAND Park Home] [BAND npshistory.org]
Bering Land Bridge National Preserve (BELA), Alaska—[BELA Geodiversity Atlas] [BELA Park Home] [BELA npshistory.org]
Big Bend National Park (BIBE), Texas—[BIBE Geodiversity Atlas] [BIBE Park Home] [BIBE npshistory.org]
Death Valley National Park (DEVA), California and Nevada—[DEVA Geodiversity Atlas] [DEVA Park Home] [DEVA npshistory.org]
Petrified Forest National Park (PEFO), Arizona—[PEFO Geodiversity Atlas] [PEFO Park Home] [PEFO npshistory.org]
Capulin Volcano National Monument (CAVO), New Mexico—[CAVO Geodiversity Atlas] [CAVO Park Home] [CAVO npshistory.org]*: No maars or tuff rings are present within the monument boundary, but Mud Hill, a nearby tuff ring, is visible from the volcano’s rim.
