Climate and Water Monitoring at Fort Union National Monument: Water Year 2022

Fort Union National Monument, New Mexico.

NPS

Overview

Together, climate and hydrology shape ecosystems and the services they provide, particularly in arid and semi-arid ecosystems and across the Southern Plains (Woodhouse and Overpeck 1998). Understanding changes in climate, groundwater, and surface water is key to assessing the condition of park natural resources—and often, cultural resources.

At Fort Union National Monument (Figure 1), Southern Plains Network scientists study how ecosystems may be changing by taking measurements of key resources, or “vital signs,” year after year—much as a doctor keeps track of a patient’s vital signs. This long-term ecological monitoring provides early warning of potential problems, allowing managers to mitigate them before they become worse. At Fort Union National Monument, we monitor climate and groundwater, among other vital signs.

Groundwater conditions are closely related to climate conditions. Because they are better understood together, we report on climate in conjunction with water resources. Reporting is by water year (WY), which begins in October of the previous calendar year and goes through September of the water year (e.g., WY2022 runs from October 2021 through September 2022). This article reports the WY2022 climate and groundwater monitoring results for Fort Union National Monument.

Reference: Woodhouse, C. A., and J. T. Overpeck. 1998. 2000 years of drought variability in the central United States. Bulletin of the American Meteorological Society 79(12): 2693–2714. https://doi.org/10.1175/1520-0477(1998)079%3C2693:YODVIT%3E2.0.CO;2

Groundwater wells at Fort Union National Monument, WY2022.

NPS

---

Go to Climate and Weather, Groundwater
Back to Top

---

Southern Plains Network scientist monitoring grasslands (another SOPN Vital Sign) on a sunny day in Fort Union.

NPS

Climate and Weather

There is often confusion over the terms “weather” and “climate.” In short, weather describes instantaneous meteorological conditions (e.g., it’s currently raining or snowing, it’s a hot or frigid day). Climate reflects patterns of weather at a given place over longer periods of time (seasons to years). Climate is the primary driver of ecological processes on earth. Climate and weather information provide context for understanding the status or condition of other park resources.

Methods

The closest weather station to Fort Union National Monument is 19 miles (31 km) away. As a substitute, climate analyses in this report use 30-year averages (1991–2020) and gridded surface meteorological (GRIDMET) data located at the Fort Union National Monument Visitor Center.

GRIDMET is a spatial climate dataset at a 4-km resolution that is interpolated using weather station data, topography, and other observational and modeled land surface data. Temperature and precipitation estimated from GRIDMET may vary from actual weather at a particular location depending on the availability of weather station data and the difference in elevation between the location of interest and that assigned to a grid cell. Data from both weather stations and GRIDMET are available through Climate Analyzer.

Results for Water Year 2022

Precipitation

Annual precipitation at Fort Union National Monument in WY2022 was 12.52″ (31.8 cm; Figure 2), which was 4.86″ (12.3 cm) less than the 1991–2020 annual average. Monthly precipitation totals in WY2022 were less than the 1991–2020 average in all months except January, June, and July.

Air Temperature

The mean annual maximum temperature in WY2022 was 67.2°F (19.6°C), 1.4°F (0.8°C) above the 1991–2020 average. The mean annual minimum temperature in WY2022 was 34.2°F (1.2°C), 1.1°F (0.6°C) above the 1991–2020 average. Mean monthly maximum and minimum temperatures in WY2022 differed by as much as 7.1°F (4.0°C; see November as an example) relative to the 1991–2020 monthly averages (Figure 2).

Climogram showing monthly precipitation and mean maximum and minimum air temperature in WY2022 and the 1991–2020 means at Fort Union National Monument. Data source: GRIDMET via climateanalyzer.org.

NPS

Drought

Reconnaissance drought index (Tsakiris and Vangelis 2005) provides a measure of drought severity and extent relative to the long-term climate. It is based on the ratio of average precipitation to average potential evapotranspiration (the amount of water loss that would occur from evaporation and plant transpiration if the water supply was unlimited) over short periods of time (seasons to years). The reconnaissance drought index for Fort Union National Monument indicates that WY2022 was drier than the 1991–2022 average, for the third consecutive year, from the perspective of both precipitation and potential evapotranspiration (Figure 3).

Reference: Tsakiris G., and H. Vangelis. 2005. Establishing a drought index incorporating evapotranspiration. European Water 9: 3–11.

Figure 3. Reconnaissance drought index for Fort Union National Monument, water years 1991–2022. Drought index calculations are relative to the time period selected (1990–2022). Choosing a different set of start/end points may produce different results. Data source: GRIDMET via climateanalyzer.org.

NPS

---

Go to Climate and Weather, Groundwater
Back to Top

---

Early morning frost on the plains surrounding Fort Union.

NPS

Groundwater

Groundwater is one of the most critical natural resources of the Southern Plains and American Southwest, providing drinking water, irrigating crops, and sustaining rivers, streams, and springs throughout the region.

Methods

Fort Union National Monument groundwater is monitored using one well, WL-0257 (Figure 1). The New Mexico Bureau of Geology and Mineral Resources began monitoring the well in 2022. The data are available at the Healy Collaborative Groundwater Monitoring Network.

Recent Findings

Groundwater levels were collected twice in WY2022 (Table 1 and Figure 4). Monitoring started in WY2022 and the first two measurements indicate that water level can be variable during the year. Additional data will be required to better understand patterns found in WY2022.

Table 1: Groundwater Monitoring Results (click on this tab to view table)

Table 1. Groundwater monitoring results in water year 2022 (WY2022), Fort Union National Monument (amsl = above mean sea level; bgs = below ground surface).

State Well Number	Location	Wellhead Elevation (ft amsl)	Mean Depth to Water (ft bgs)	Mean Water Level Elevation (ft amsl)	Change in Elevation from WY2021(± ft)
WL-0257	Fort Union NM	6,719.00	97.95	6,621.05	Not applicable

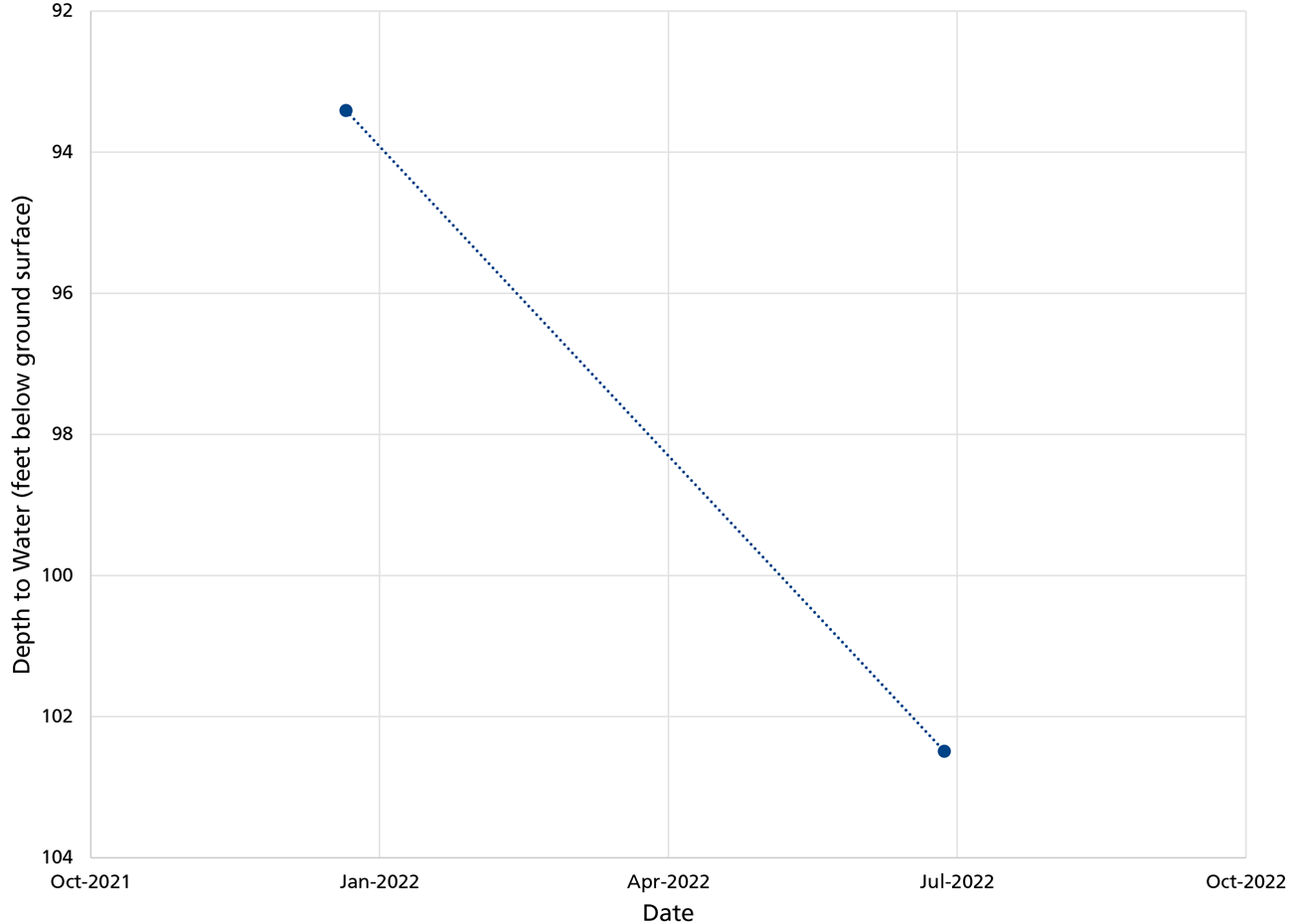

Depth to water in feet below ground surface (bgs) at one groundwater well at Fort Union National Monument in water year 2022.

NPS

Article created by the Southern Plains Inventory and Monitoring Network.

---

Go to Climate and Weather, Groundwater
Back to Top

---

Authors: Kara Raymond, Andy Ray

Please cite this report as
Raymond, K., and A. Ray. 2023. Climate and Water Monitoring at Fort Union National Monument: Water Year 2022. Southern Plains Network, National Park Service, Pecos, New Mexico.
