2021 Estuarine Nutrient Enrichment Status Report: George Washington Birthplace NM

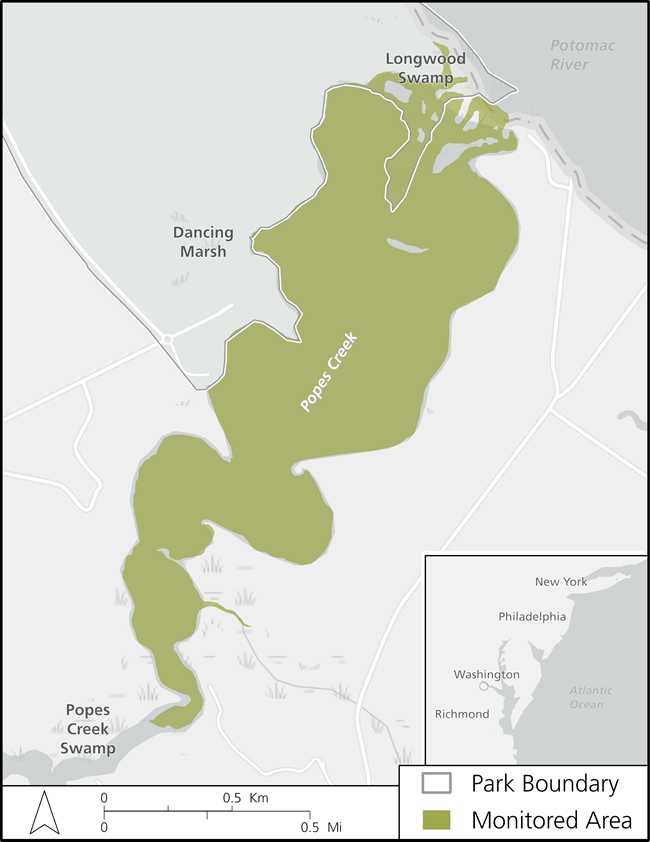

Map of the George Washington Birthplace National Monument estuarine systems which are monitored for nutrient enrichment, and located in Westmoreland County, Virginia.
Fig. 1: Map of the George Washington Birthplace National Monument estuarine area that is monitored for nutrient enrichment, and located in Westmoreland County, Virginia.

Site Context

George Washington Birthplace National Monument (GEWA) is located along the tidal reaches of the Potomac River in Westmoreland County, Virginia (Fig. 1). The Potomac shoreline delineates the northern boundary of the monument, where three small sub-basins drain into the Potomac. The largest and most significant estuarine resource is Popes Creek, which has restricted flushing with the Potomac and is closely linked to GEWA resources. The monitoring area covers all tidal portions of Popes Creek, which includes approximately 137.7 ha of estuary outside and 4.7 ha inside the park.

The threat of nutrient enrichment is a primary management concern. Water quality monitoring follows Northeast Coastal and Barrier Network’s Protocol for Monitoring Estuarine Nutrient Enrichment (Kopp and Neckles, 2009). The protocol’s primary goal is to assess how estuarine natural resources are affected by changing nutrient inputs by determining the status and trends of response indicators within the monitored estuarine areas of each park.

Presented here are condition status summaries of three key response indicators:
1) bottom water dissolved oxygen (DO)
2) surface water chlorophyll-a
3) water column light attenuation (Kd)

Threshold values are used to determine “good”, “fair”, and “poor” condition categories (Table 1), which are consistent with those used by the US Environmental Protection Agency (USEPA) for national coastal condition reporting (USEPA 2001b, 2004) and thresholds used by National Oceanic and Atmospheric Association for the National Estuarine Eutrophication Assessment (Bricker et al. 1999).

Water clarity is expressed as Kd (m-1). Cutoff values of Kd have been calculated from the USEPA criteria for turbidity, using the thresholds for areas with significant submerged aquatic vegetation (SAV).

Table 1: Threshold values associated with each measured nutrient enrichment condition category.
Measure Good Fair Poor
Chlorophyll-a < 5 µg/L 5-20 µg/L > 20 µg/L
Dissolved oxygen > 5 mg/L 2-5 mg/L < 2 mg/L
Light attenuation < 0.92 m-1 0.92-1.61 m-1 > 1.61 m-1

Bottom Water Dissolved Oxygen

Bottom water DO concentration is an indirect indicator of nutrient load and direct indicator of estuarine water chemistry and organism health. Oxygen is consumed when microbial decomposers mineralize organic matter on and within estuarine sediments. When sediment organic matter increases due to nutrient over-enrichment it can cause an overgrowth of nuisance algae. The resulting heightened microbial decomposition can lower DO concentrations in bottom waters. It can also lead to increased extent and duration of bottom water anoxia and toxic sulfide concentrations. Nutrient enrichment can, ultimately, impact fauna diversity and abundance and shift species dominance.

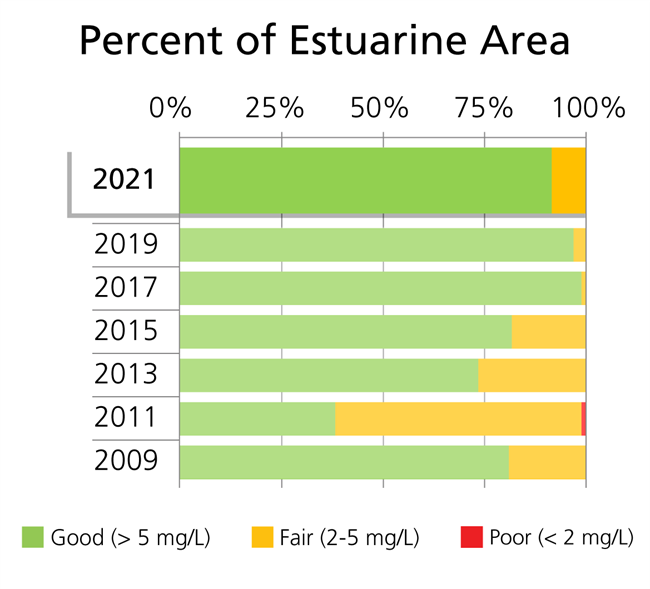

Bottom dissolved oxygen concentration (mg/L) condition categories by percent of total estuarine area at the George Washington Birthplace National Monument.
Fig. 2: Bottom water dissolved oxygen concentration (mg/L) condition categories by percent of total estuarine area at the George Washington Birthplace National Monument.

During the 2021 summer index period, GEWA park-wide average bottom water dissolved oxygen concentrations were good within 95.2% of the sampled estuarine area, and fair within 4.8% (Fig. 2). 2021 conditions were consistent with the previous five index periods, where there has been a significant majority of the estuarine area in good condition. 2021 marks the third period in which the majority was over 90% good.

Surface Water Chlorophyll-a

Nutrient enrichment often stimulates phytoplankton production, leading to population growth. Phytoplankton growth is often nutrient-limited. Trends of increasing biomass can suggest increasing nutrient load. Surface water chlorophyll-a concentration is an indicator of phytoplankton population growth, nutrient enrichment, and overall water quality.

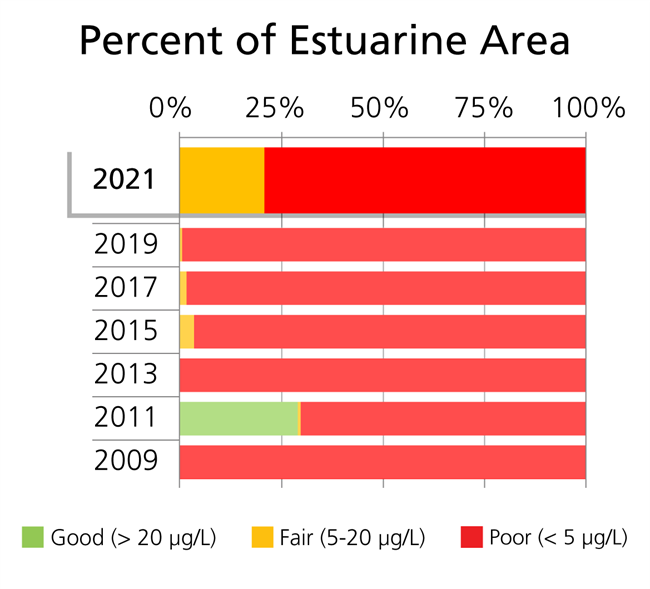

Surface chlorophyll-a concentration (μg/L) condition categories by percent of total estuarine area at the George Washington Birthplace National Monument.
Fig. 3: Surface water chlorophyll-a concentration (μg/L) condition categories by percent of total estuarine area at the George Washington Birthplace National Monument.
During the 2021 summer index period, GEWA park-wide average surface water chlorophyll-a concentrations were fair within 17.8% of the sampled estuarine area, and poor within 82.2% (Fig. 3). 2021 conditions were slightly improved from previous index periods, with a decrease in poor condition areas and an increase in fair condition areas. There has only been one year (2011) with any percentage of the estuarine area in good condition.

Water Column Light Attenuation

Submerged aquatic vegetation (SAV) provide important ecosystem services. SAV productivity and distribution depend on light. Light attenuation through the water column is dependent on concentrations of phytoplankton, which can correlate with nutrient enrichment, and suspended inorganic and dissolved organic matter. Regardless of current SAV presence, NCBN continues to monitor this critical SAV parameter, as it provides information relevant to the overall estuarine eutrophication status.

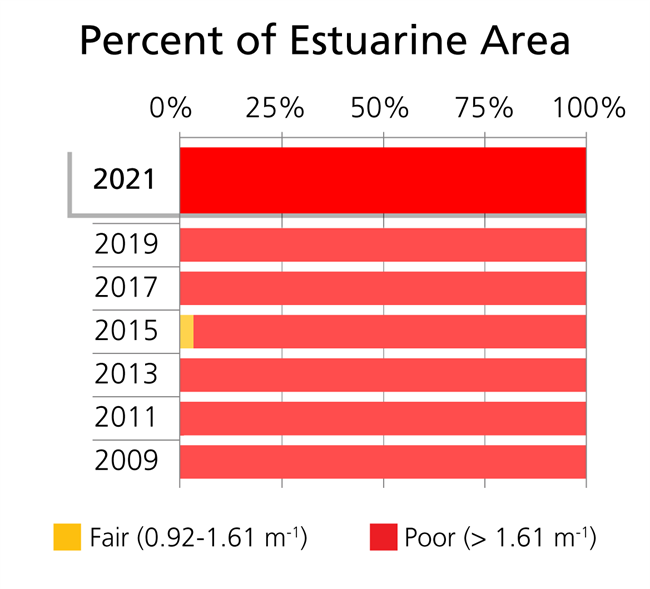

Light attenuation, represented by coefficient Kd (m-1), condition categories by percent of total estuarine area at the George Washington Birthplace National Monument.
Fig. 4: Water column light attenuation, represented by coefficient Kd (m-1), condition categories by percent of total estuarine area at the George Washington Birthplace National Monument.
During the 2021 summer index period, GEWA park-wide average water column light attenuation (Kd) was poor within 100% of the sampled estuarine area (Fig. 4). 2021 conditions were consistent with all previous index periods, where the estuarine area has been entirely in poor condition.

Conclusion

In 2021, the George Washington Birthplace National Monument saw varying conditions of bottom water dissolved oxygen, near surface water chlorophyll-a, and water column light attenuation (Kd). The majority of sampled estuarine area for GEWA was in good condition for bottom water dissolved oxygen concentration. Historically, bottom water dissolved oxygen levels have been good for most of the estuarine area in the GEWA sample system. For surface water chlorophyll-a and water column light attenuation (Kd), however, the majority of the area was in poor condition.

Surface water chlorophyll-a and water column light attenuation condition at GEWA in 2021 show Popes Creek remains a eutrophic system.

The restricted flushing at the flood-tide delta at its mouth traps eroded sediment and nutrient-rich residential and agricultural runoff from surrounding lands and the Potomac River. Nutrient entrapment within the estuary leads to eutrophication.
Scientist holds water quality sensor and dangles cord over the edge of a boat.
Park staff collects water quality data in one of the monitored estuaries.

NPS Photo / Michaela Compo
